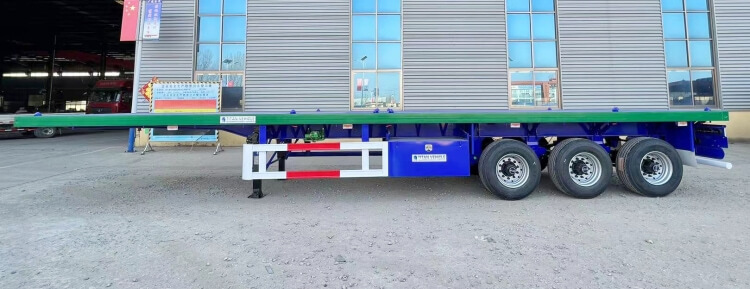

Single Tire 40 Foot Flatbed Semi Trailer

3 Axle Flatbed Semi Trailer Description :

TITAN adopts advanced submerged arc welding technique to produce the 40 foot flatbed semi trailer for sale, there is no welding interface between middle, bottom and upper plate of main beam.

TITAN also adopts high strength steel material to manufacture the 40 foot flatbed semi trailer for sale in Congo, it can make the flatbed semi trailer for sale have a higher loading capacity and a longer service life. Also the 3 axle flatbed semi trailer floor is checker plate, this will keep the other bulk cargo more stable.

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

40 Foot Flatbed Semi Trailer for Sale in Congo | 3 Axle Flatbed Semi Trailer

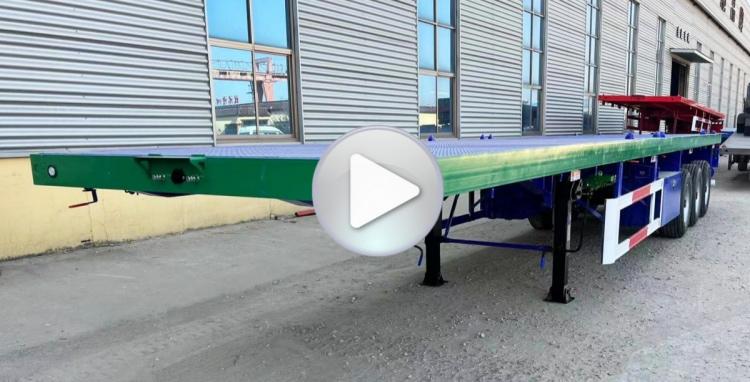

Video of 40 Foot Flatbed Semi Trailer for Sale :

3 Axle Flatbed Semi Trailer Specification :

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 6 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

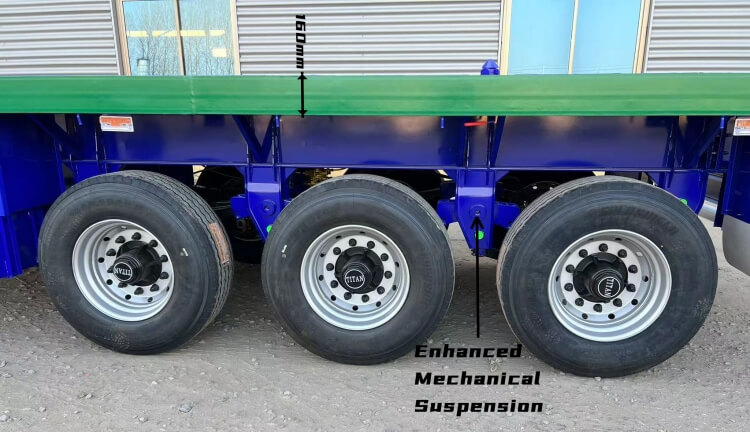

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

Platform: 3mm-thick checkered plate

Twist Locks: 4,8,12 sets (lifting or screw type)
