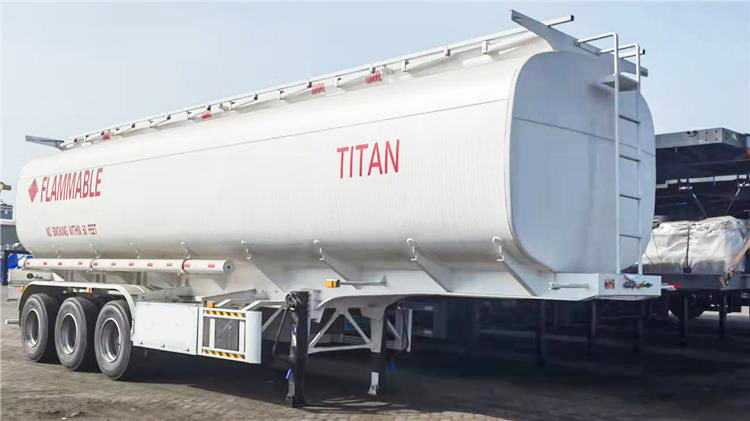

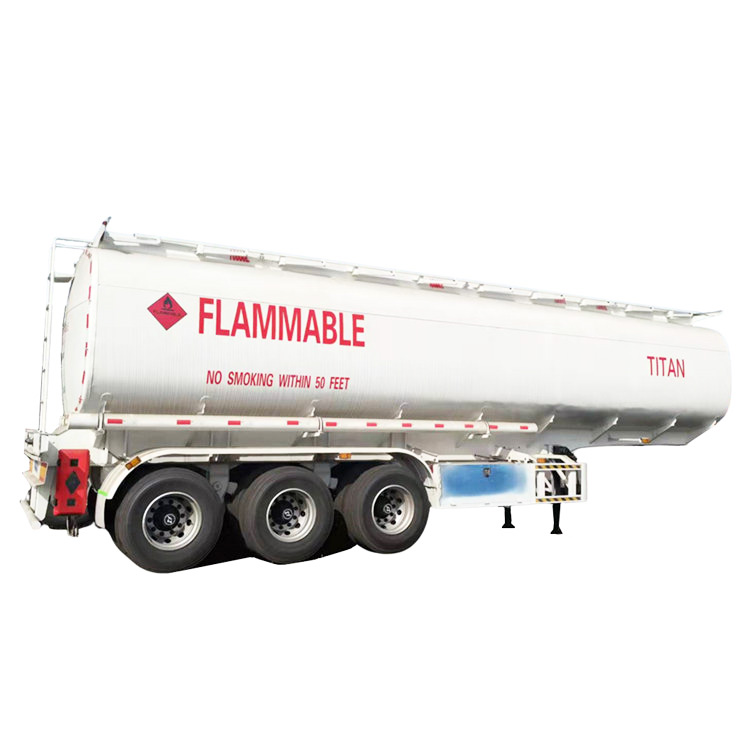

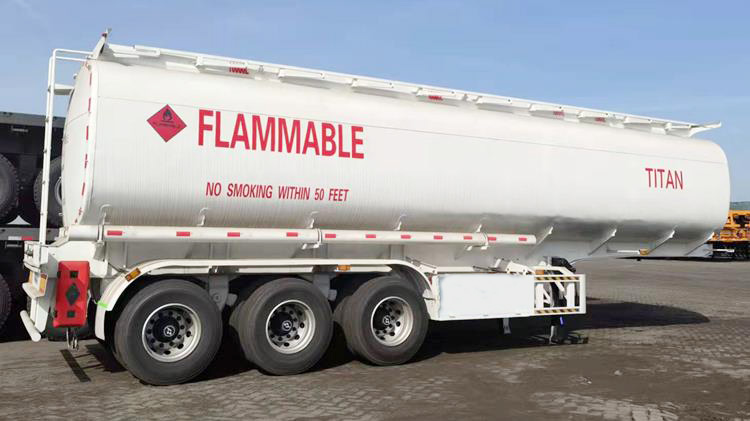

This 40000L Tri Axles Fuel Trailer uses advanced suspension and braking systems to ensure the stability and comfort of the vehicle while driving, while also shortening transportation time and improving transportation efficiency.
40000L tri axles fuel trailer, also known as fuel tank trailers, oil tanker trailers or monoblock trailers, are specialized vehicles that transport liquid fuels. Fuel tanker trailers as they are commonly called are vehicles with large tanks for transporting liquids. 40000L tri axles fuel trailer are mainly used for transporting liquid and oil.
The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy fuel semi trailer, stainless steel tanker for sale, polyethylene and other materials.
They are designed for specific safe shipping of various liquids. Fuel Tanker Trailers for sale can be equipped with a pumping system for loading and off-loading liquids.
40000L Tri Axles Fuel Trailers for Sale Near Me in Congo Kinshasa
40000L Tri Axles Fuel Trailers for Sale Near Me in Congo Kinshasa
Dimension: 11350mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³):40000 Litres
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T,BPW
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
Welcome to contact us !
