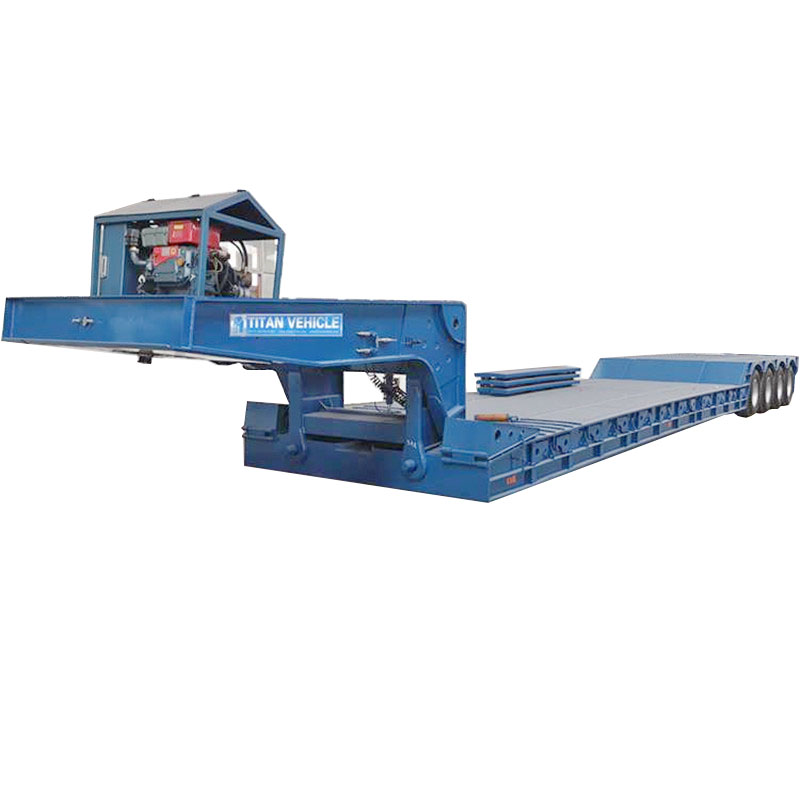

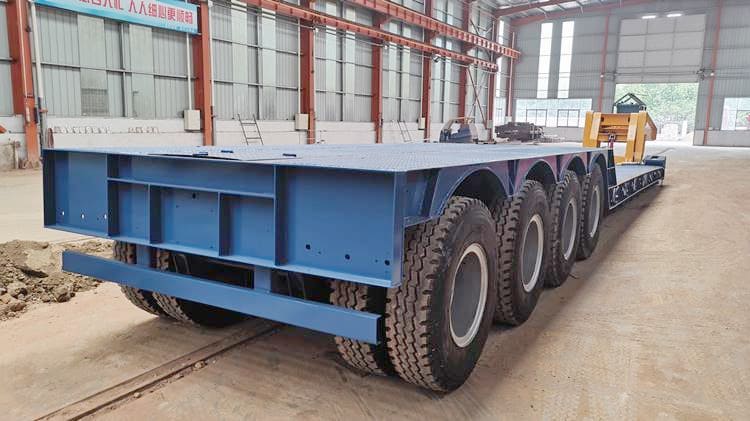

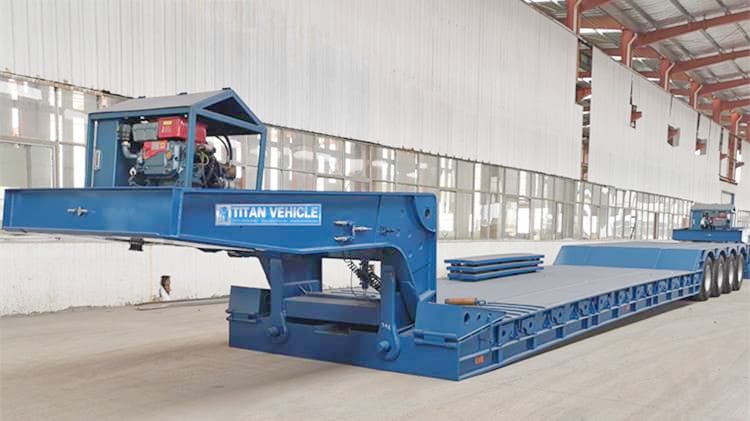

4 Axle Front Loading Loader Trailer

Front Loading Lowbed Trailer:

The gooseneck on front loading low loader are hydraulically driven, with automatic lifting and automatic alignment functions. It can always be easily slid into the V-shaped alignment groove included in all our front loading lowbed trailer. Our hydraulically controlled fork does not need to manually block the neck during disassembly. The heavy-duty hydraulic cylinders are made in the United States, combining power and convenience. Our increased cylinder stroke means you can raise the trailer chassis from the ground to 16"-20", depending on the fifth wheel height.

4 Axle Front Loading Lowbed Loader Trailer for Sale in Congo Kinshasa

4 Axle Front Loading Lowbed Loader Trailer for Sale in Congo Kinshasa

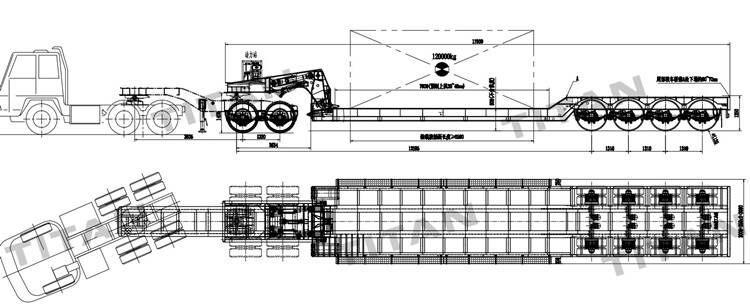

Specification of front loading low loader:

Dimension: 16500mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW Brand

Tire: 11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch

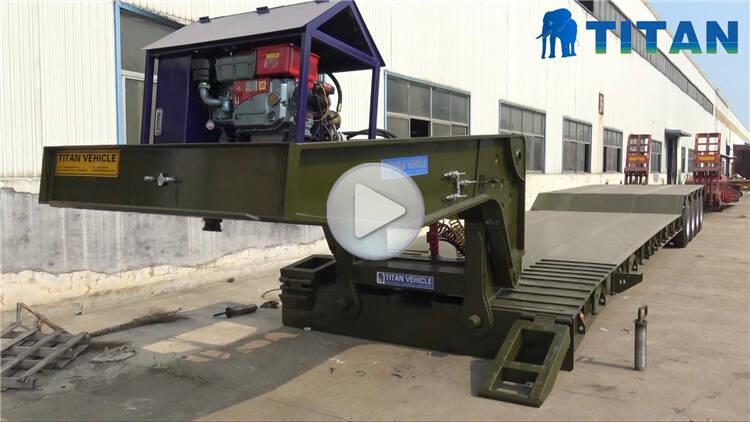

Through the video, you can know different types of front loading lowbed trailer, front loading low loader, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
