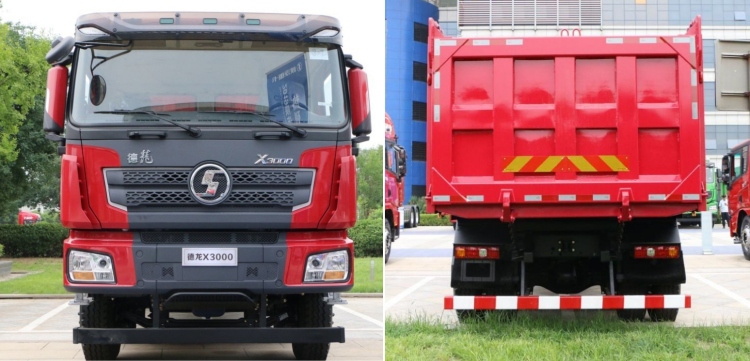

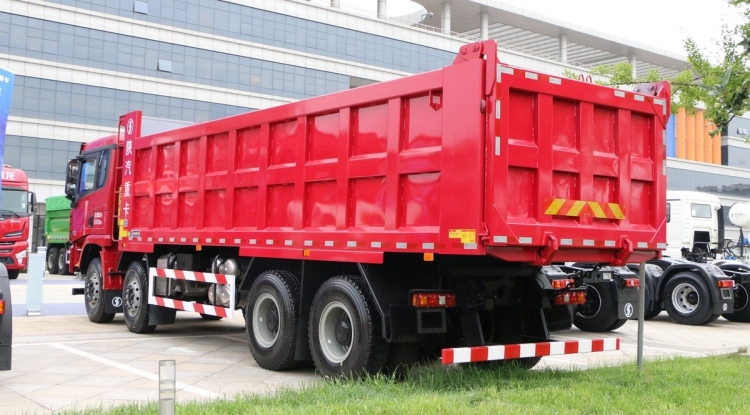

Shacman X3000 Dump Truck

Shacman X3000 Dump Truck Description :

The engine model used in the Shacman X3000 dump truck is Weichai WP12.430E50, with a displacement of 11.5L, a peak torque of 2060 Nm, and a maximum output of 430 horsepower (316kw).

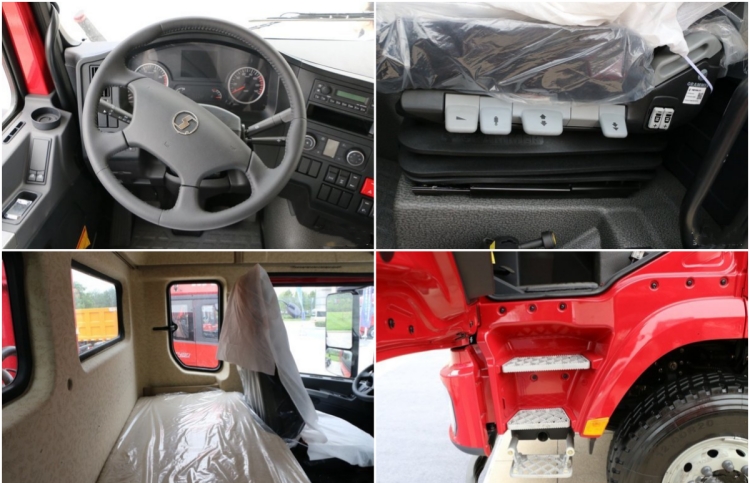

The main driver's seat uses an airbag seat, which has multiple adjustments and lumbar support functions. It is better in terms of comfort and shock absorption. Proper use of the lumbar support function can also keep the lumbar spine in a healthy state.

Shacman X3000 Dump Truck in Congo | Shacman Dump Truck Price | Shacman 12 Wheeler Dump Truck

Shacman X3000 Dump Truck in Congo | Shacman Dump Truck Price | Shacman 10 Wheeler Dump Truck

Shacman X3000 Dump Truck in Congo | Shacman Dump Truck Price | Shacman 10 Wheeler Dump Truck

Shacman X3000 Dump Truck in Congo | Shacman Dump Truck Price | Shacman 12 Wheeler Dump Truck

Shacman X3000 Dump Truck in Congo | Shacman Dump Truck Price | Shacman 12 Wheeler Dump Truck

Shacman X3000 Dump Truck Specification :

Traction type: 8X4

Driving type: LHD/RHD

Driver's cab: X3000 long high roof cabin, 2 seats, two sleepers, air conditioner, upper and side wind deflector, 4 points air suspension, Electrically heated rear-view mirror, electric flip, central locking

Clutch: EATON 430mm

Shacman Dump Truck Transmission: FAST 12JSD160TA (12 speeds)

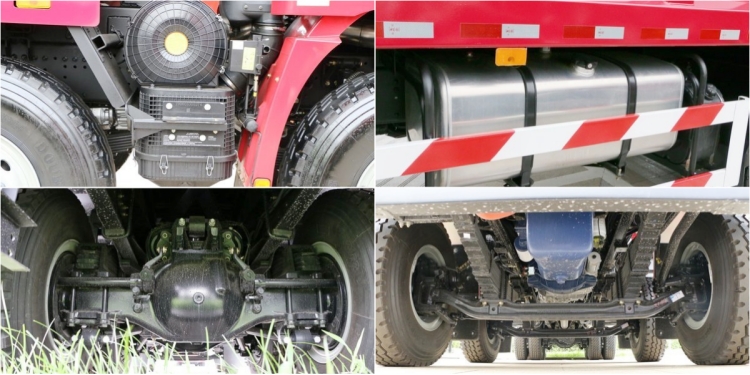

Front Axle: MAN axle, 7.5T

Rear Axle: MAN single reduction driving axle, 13T*2

Ratio: 4.111

Frame: (940-850)*300mm

Suspension: Leaf spring

Shacman Dump Truck Tyre: 315/80R22.5 Tubeless Tyre(10+1 pcs)

Fifth wheel: 3.5’(90#)

Fuel tank: 400L Aluminium

Electrics: Operating voltage: 24V, negative grounded

Performance: Maximum driving speed: 110km/h

Shacman X3000 Dump Truck Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP12.430E50

Maximum output: 430 horsepower (316kw)

Shacman X3000 Dump Truck Dimension

Wheel base(mm): 3175+1400mm

Overall size(mm): 7000x2550x3700mm
