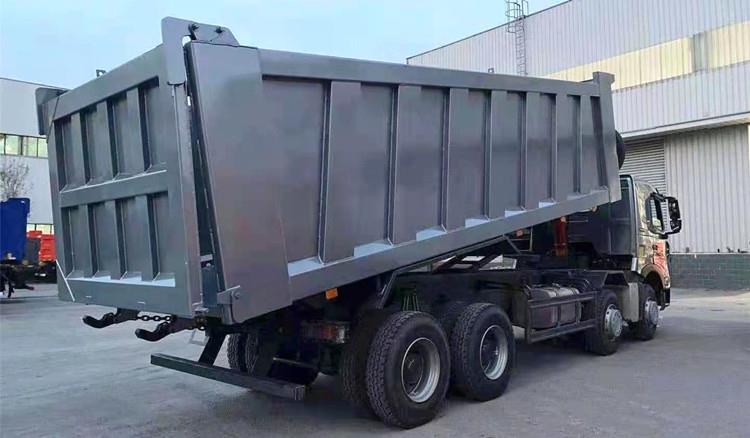

All kinds of howoa7 8x4 tipper truck cargo body structure can be designed and produced according to your request, make it have high rigidity, high loading capacity.
Advantage:
Greatly save time and labor for unloading
Shorten transportation cycle and improve production efficiency
Reduce transportation cost
Howoa7 Dump Truck | Sinotrucks 8x4 Tipper Truck for Sale in Congo Banana
Howoa7 Dump Truck | Sinotrucks 8x4 Tipper Truck for Sale in Congo Banana
MODEL: ZZ3317N3567N1B
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
Welcome to contact us !
