Since the 20 ton hohan tipper truck can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.
SINOTRUCK 6x4 tipper truck own the elegant appearance, strong operation system and excellent safety. Since the 20 ton hohan tipper truck can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.
You can choose cargo body with front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

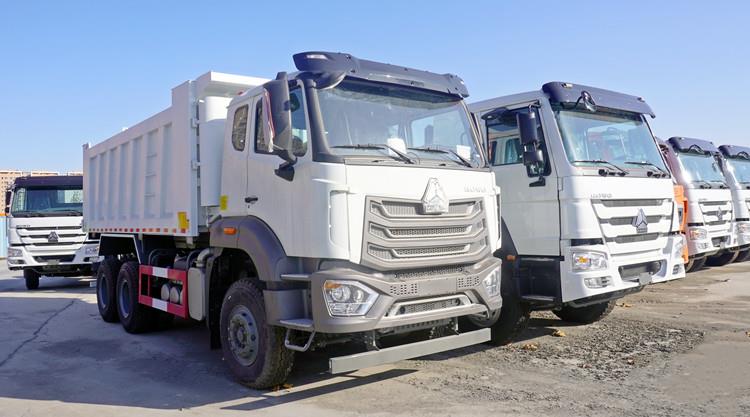

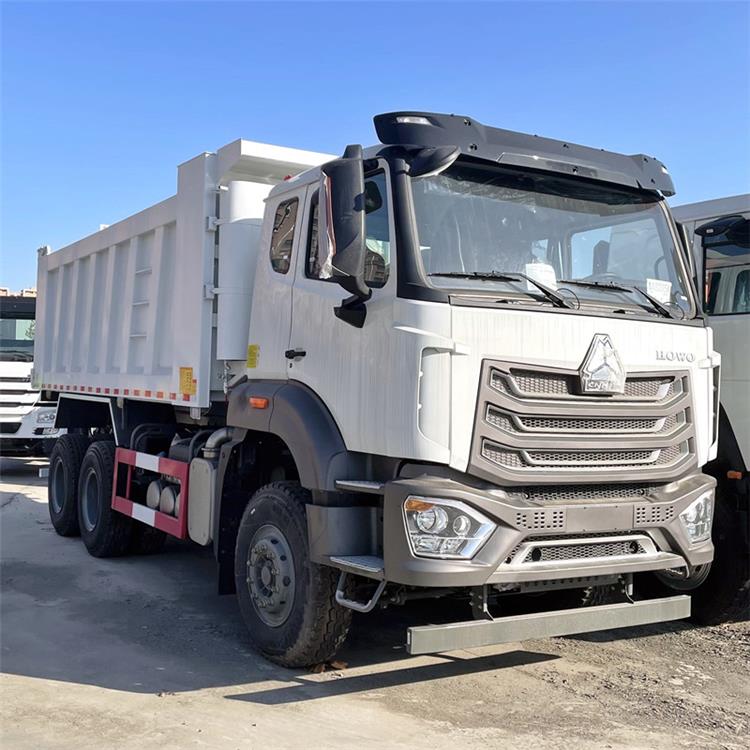

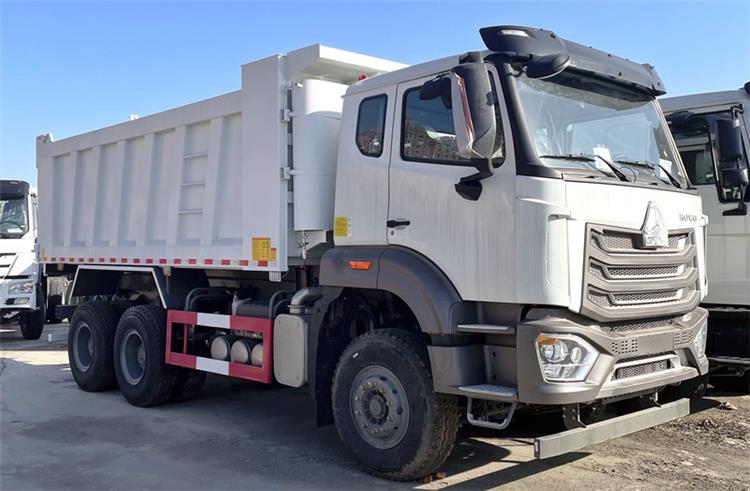

Sinotruck 20 Ton Hohan 6x4 Tipper Truck for Sale in Congo Kinshasa
Sinotruck 20 Ton Hohan 6x4 Tipper Truck for Sale in Congo Kinshasa
MODEL: ZZ3255N3846B1
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: D50, hydraulic steering with power assistance
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
