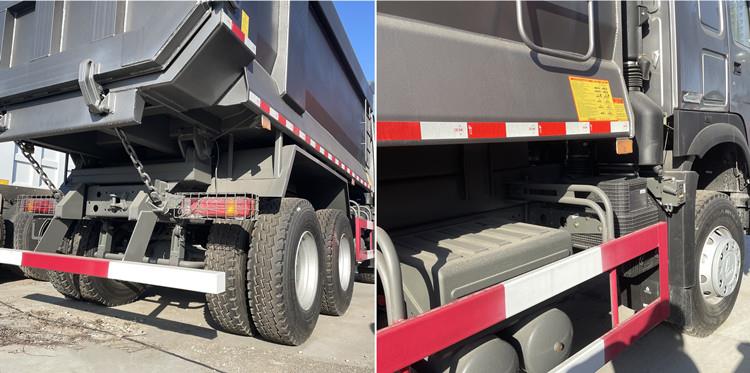

U-shape howo 371 dump truck is suitable for in harsh environments, unloading and transport ore and others. Unloading speed of u-shape dump truck is very fast. Dump truck is your good assistant in the work.
SINOTRUK HOWO dump truck is a heavy truck with hot sales exported to foreign countries. We have two kinds of dump trucks, front tipping and middle tipping. There are three common driving, 4x2, 6x4, 8x4. The size of the cargo can also be customized according to your requirements.

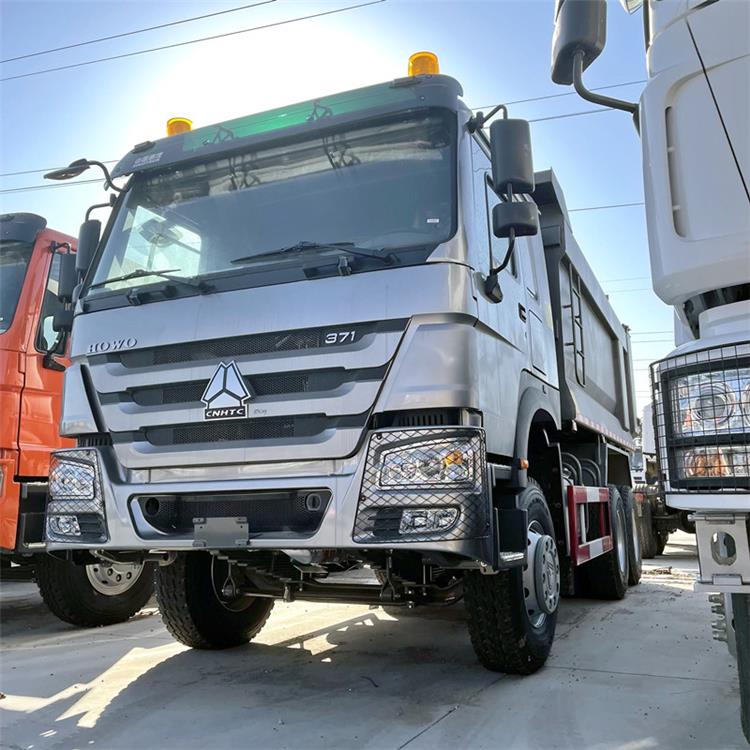

Sinotruk 20 Ton U-shape Howo 371 Dump Truck Price in Congo Kinshasa
Sinotruk 20 Ton U-shape Howo 371 Dump Truck Price in Congo Kinshasa
MODEL: ZZ3317N3567N1B
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 13R22.5
Welcome to contact us !
