All kinds of howo a7 dump truck cargo body structure can be designed and produced according to your request, make it have high rigidity, high loading capacity.
Advantage:
Greatly save time and labor for unloading
Shorten transportation cycle and improve production efficiency
Reduce transportation cost

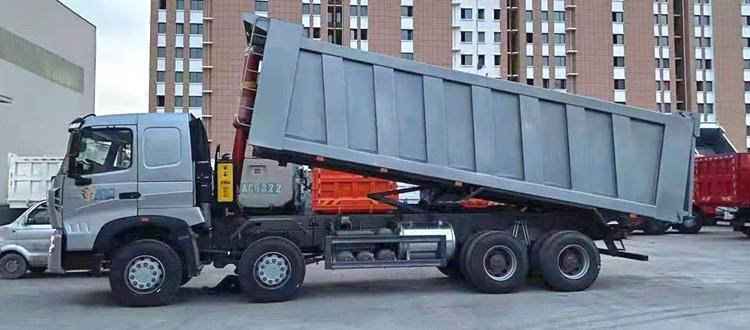

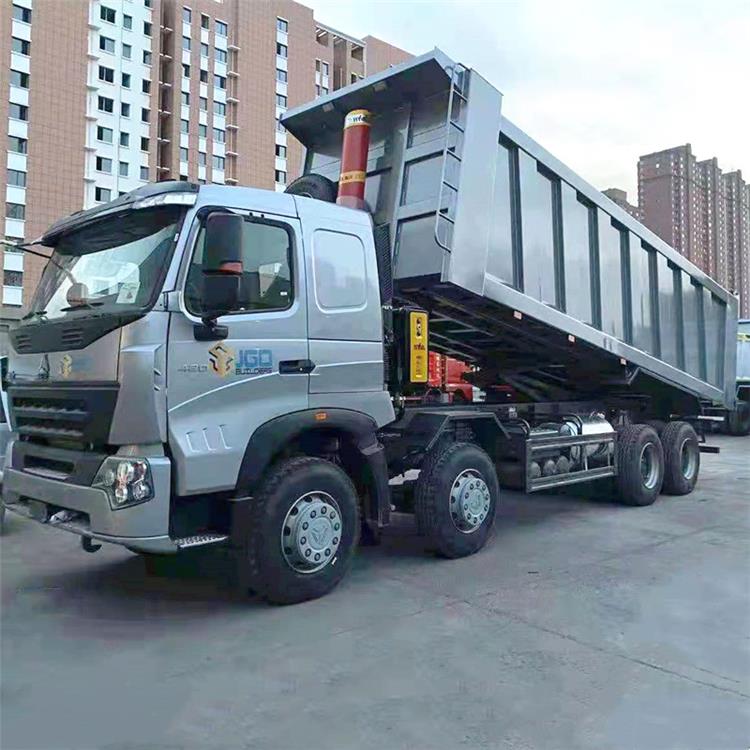

Sinotruk Howo A7 420 8x4 Dump Truck 30 Ton for Sale in Congo Kinshasa
Sinotruk Howo A7 420 8x4 Dump Truck 30 Ton for Sale in Congo Kinshasa
MODEL: ZZ3317N3567N1B
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
