The low loader trailer for sale is built to handle the transport of heavy and oversized machinery, and the consistent performance under load makes a dependable choice for safely carrying large equipment, meeting the transportation demands.
Designed for the efficient hauling of bulky and non-standard cargo, the low loader trailer for sale is frequently used in sectors like construction, agriculture, and heavy industry. One of the standout features of the low loader is its low-profile chassis, which provides a lower center of gravity, which contributes to improved load stability during transit. The low loader trailer is constructed with reinforced thickness, ensuring strong support for heavy items and promoting safe, reliable usage on long routes.
Interested in low loader trailer? Contact us now to get a free spare tire!

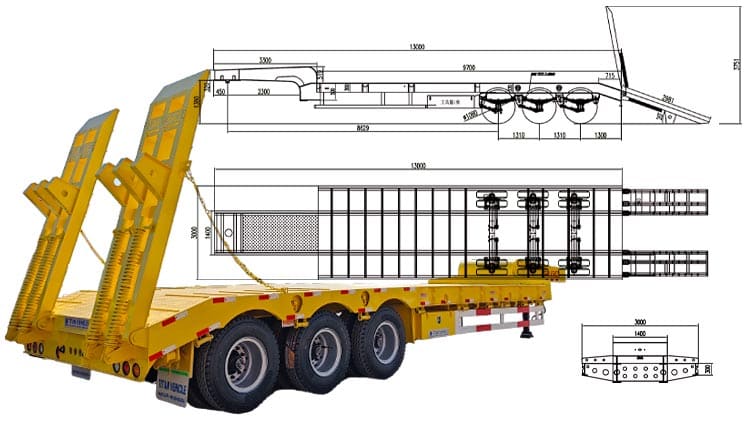

Overall Dimension: 13000mm*3000mm*1710mm
Load Capacity: 60 ton
Ramp: 16mm thickened spring ramp
Floor Plate: 5mm thick pattern plate
Side beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 10.00R20
Landing Gear: FUWA brand, 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Interested in low loader trailer? Contact us now to get a free spare tire!

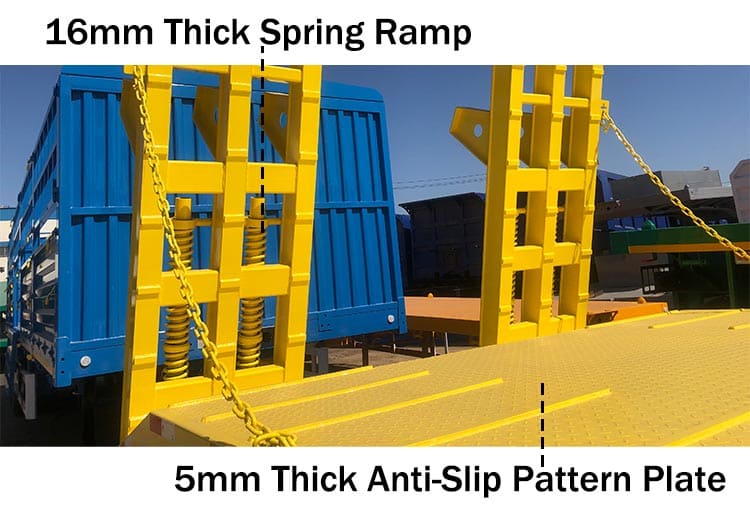

The low loader trailer deck surface is made from a 5mm thick patterned steel sheet, offering better grip during loading and transit. The textured floor, along with rear anti-slip design, creates a layered system that prevents machines or cargo from shifting out of place. These features provide extra protection during both the loading process and movement on the Congo road.
For added durability and visual appeal, the entire low loader frame undergoes a powder spraying and baking treatment process. Although the advanced coating method increases production cost, results in a tougher, more vibrant finish that resists wear and fading. With finish, the 3 axle low loader trailer for sale can retain its appearance for up to five years with minimal maintenance, even in tough environments.
To assist with loading operations, the low loader is equipped with a spring ramp system. The ramp self-adjusting function allows to maintain proper ground contact, making easier to drive equipment on and off. The 16mm spring reinforcements help absorb the impact of heavy equipment, maintaining stability during use. The ramp mechanism is simple to operate and can be deployed by a single person, enhancing efficiency and saving labor for Congo customers.
The low loader trailer for sale braking setup includes 16-ton capacity brake pads. The braking system significantly improves response time, particularly in emergency situations, helping to reduce the risk of tire locking. Not only does enhance safety during transport, but also extends tire lifespan by preventing excessive wear.

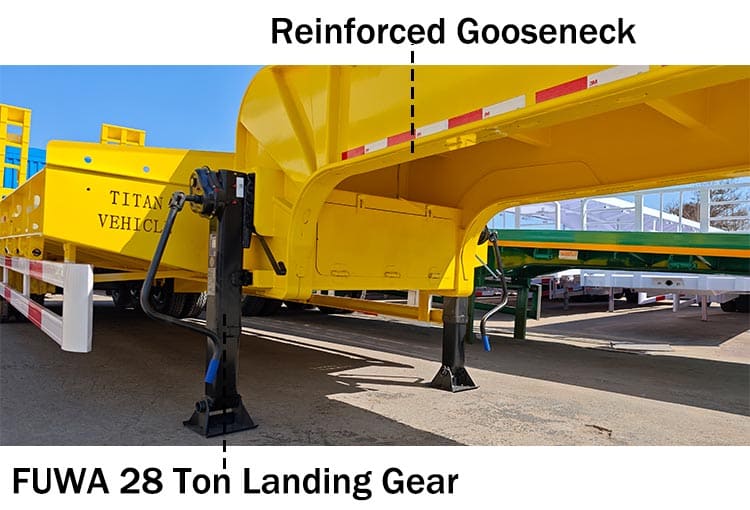

The low loader trailer for sale is equipped with robust landing gear systems that can support dynamic loads of up to 28 tons and handle static weights as high as 60 tons. Designed with a broad base, the landing gear distributes pressure more effectively across the ground surface. The wide-contact design reduces the risk of sinking and improves overall stability, making the low loader well-suited for challenging terrains such as sandy areas, loose gravel roads, and muddy sites in regions like Congo.
Cargo security is further improved with the use of rope tighteners that work in coordination with the reinforced drop deck. The configuration creates multiple anchor points to keep equipment in place, especially during sudden stops or sharp turns. The system is essential when moving heavy machinery over long distances.

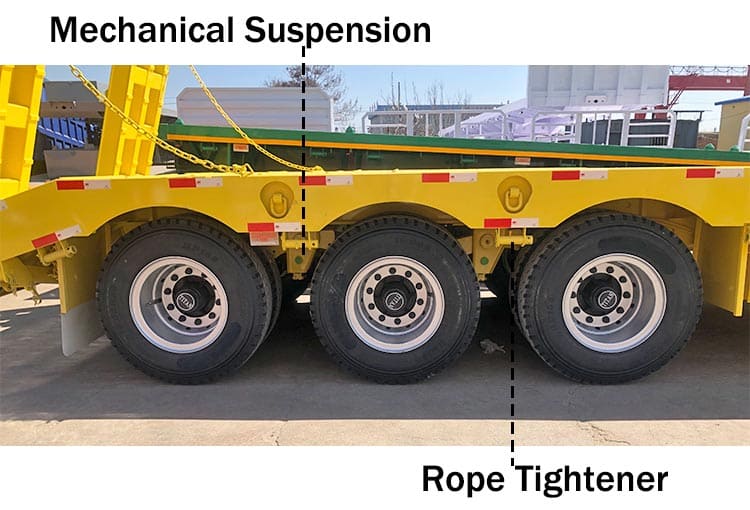

To support operation on less-than-ideal road surfaces, the low loader features a tough mechanical suspension system, includes steel leaf springs made from high-strength materials, which help absorb vibrations and soften the impact of rough terrain in Congo. Whether traveling on gravel, potholes, or uneven roads, the suspension setup offers a stable ride while protecting both cargo and low loader trailer.
A heavy duty axle system further reinforces the low loader trailer for sale structure. With three 13-ton axles, the setup is built to withstand stress caused by difficult terrain and environmental conditions. The axle system helps maintain long term structural integrity, especially under continuous use in rough or off-road environments common in Congo.
TITAN implements a thorough packaging approach before shipping. Each low loader receives a protective wax layer followed by a full wrap in waterproof material. The dual protection shields the low loader trailer from humidity and seawater exposure during marine transport, keeping in good condition until reaches the customer.
