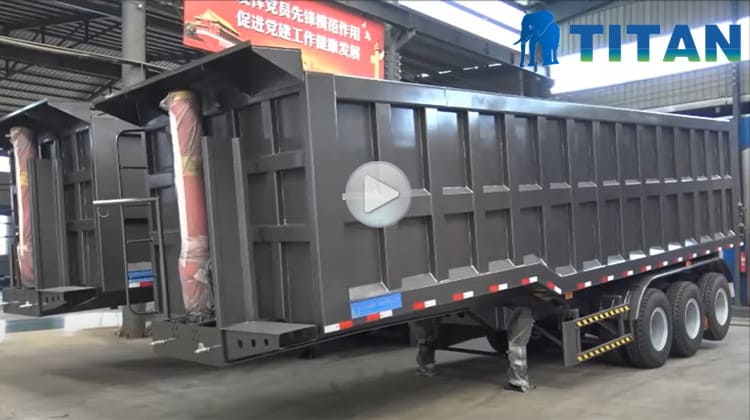

Through this video , you can see the 3 axle 30cbm tractor tipper trailer for sale.

How to operate a semi trailer tipper?

TITAN lifting hydraulic system lifting operation sequence: Open the tarpaulin or box lid on the semi trailer tipper for sale——Open the rear door lock——Press the clutch with the transmission in neutral and wait 5 seconds——Hanging low gear (below 4 gears)——Place the handle of the air control valve in the raised position——The semi trailer tipper starts to lift after releasing the clutch, The engine throttle can be properly depressed but it must be controlled within 1500 rpm-when the cylinder reaches the maximum stroke or the limit valve is activated, the air control valve handle is in the stop position.

Lifting principle:

The tractor gearbox uses an external power take-off to pressurize hydraulic oil pump. The hydraulic tipper trailer hydraulic oil pump controls the hydraulic oil pressure to achieve the lifting or lowering of the semi tipper trailers for sale hydraulic cylinder. Generally, tipper semi trailer can be fully lifted in 30 seconds to achieve unloading.
